Mild Steel Swingbolts Zinc Plated
Description

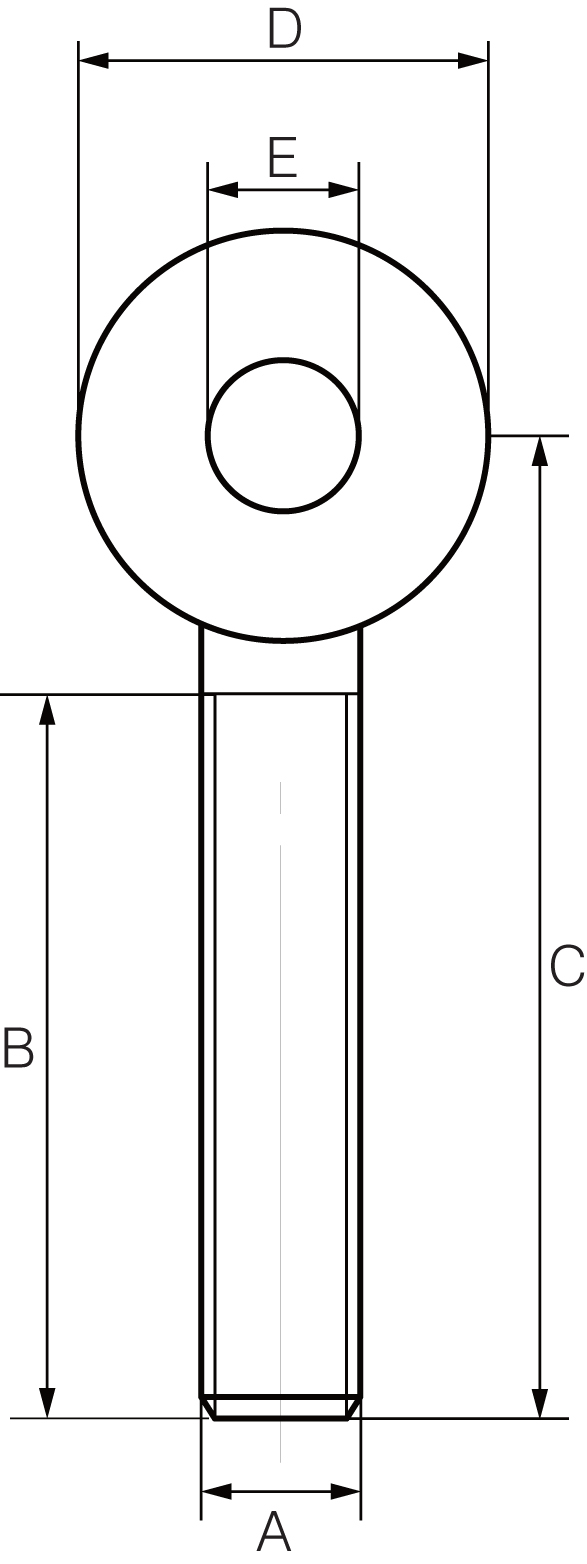

Product Code |
A |
B |
C |
D |
E |
Weight (kgs/each) |
|---|---|---|---|---|---|---|
ZPSB1265 |
M12mm |
65mm |
81mm |
30mm |
13mm |
0.13 |
ZPSB10100 |
M10mm |
100mm |
110mm |
20mm |
11mm |
0.09 |
ZPSB12100 |
M12mm |
100mm |
116mm |
30mm |
13mm |
0.15 |
ZPSB12150 |
M12mm |
150mm |
166mm |
30mm |
13mm |
0.18 |
ZPSB16100 |
M16mm |
100mm |
119mm |
38mm |
17mm |
0.3 |
ZPSB16150 |
M16mm |
150mm |
169mm |
38mm |
17mm |
0.4 |
ZPSB16200 |
M16mm |
200mm |
219mm |
38mm |
17mm |
0.45 |
ZPSB20102 |
M20mm |
102mm |
125mm |
45mm |
21mm |
0.5 |
ZPSB20127 |
M20mm |
127mm |
150mm |
45mm |
21mm |
0.56 |
ZPSB20150 |
M20mm |
150mm |
175mm |
45mm |
21mm |
0.62 |
ZPSB20175 |
M20mm |
175mm |
200mm |
45mm |
21mm |
0.68 |
ZPSB20227 |
M20mm |
227mm |
250mm |
45mm |
21mm |
0.8 |
ZPSB24150 |
M24mm |
150mm |
175mm |
50mm |
26mm |
0.9 |
ZPSB24250 |
M24mm |
250mm |
275mm |
50mm |
26mm |
1.2 |
